Rubber Expansion Joint For Water Pump, DN100 Eccentric Reducing Rubber Expansion Joint

Place of Origin : Henan, China

Brand Name : ZHICHENG

Model Number : ZCC

Certification : International Organization for Standardization

Price : $20.00/bushels 1-99 bushels

Warranty : 1 years

Customized support : OEM, ODM

Technics : Vulcanising and forming

Connection : Flange

Shape : Equal

Head Code : Round

Product Name : Pn16 Carbon Steel Epdm Flexible Concentric Reducer Rubber Joint

Flange material : CS, SS304, SS316, etc.

Work stress : 1.0 - 2.5 MPa

Media : Air, water, oil, weak acids and bases

Size : DN25-DN300mm

Flange standards : DIN/JIS/ANSI/BS/ISO

Vacuum : 53.5-100mmHg

MOQ : 1 Piece

MOQ : 1

Contact Now

Oil and Gas Resistant Rubber Expansion Joint for Water Pump,

DN100 Eccentric Reducing Rubber Expansion Joint

Video description






Products Description

The rubber flexible joint, also known as a rubber flexible joint, a flexible rubber joint, or a rubber

shock absorber, is a tub rubber component mainly composed of inner and outer rubber layers,

fabric layers, and steel wire rings. It is formed by high-temperature and high-pressure vulcanization

then combined with metal flanges. It is widely used in fire protection, chemical, pump valve,

and other pipeline systems to absorb displacement generated during operation, providing resistance

and noise reduction.



NO Name Material Name Material
1 Union Malleable iron/ss304 Outer/inner rubber EPDM,NR,NBR,PTFE,BR,CR,BR+CR,FKM,etc.
2 Outer/inner rubber EPDM,NR,NBR,etc. Frame Nylon cord fabric
3 Frame Nylon cord fabric Flange stainless steel,carbon steel,ductile iron.



Name Size
Routine rubber joint DN15~DN4000
Concentric reducer rubber joint DN32xDN25~DN600xDN500
Eccentric reducer rubber joint DN100xDN80~DN500xDN300



NO Name Material Remarks
1 Outer/inner rubber EPDM,NR,NBR,PTFE,BR,CR,BR+CR,FKM,Sylopute. Select different materials according to the media
2 Frame Nylon cord fabric the density and number of layers determine the pressure
3 Pressurized ring Nylon cord fabric Prevent pressure bearing deformation from being pulled off
4 Flange stainless steel,carbon steel,ductile iron. Choose different materials according to your requirements
Rubber Expansion Joint For Water Pump, DN100 Eccentric Reducing Rubber Expansion Joint

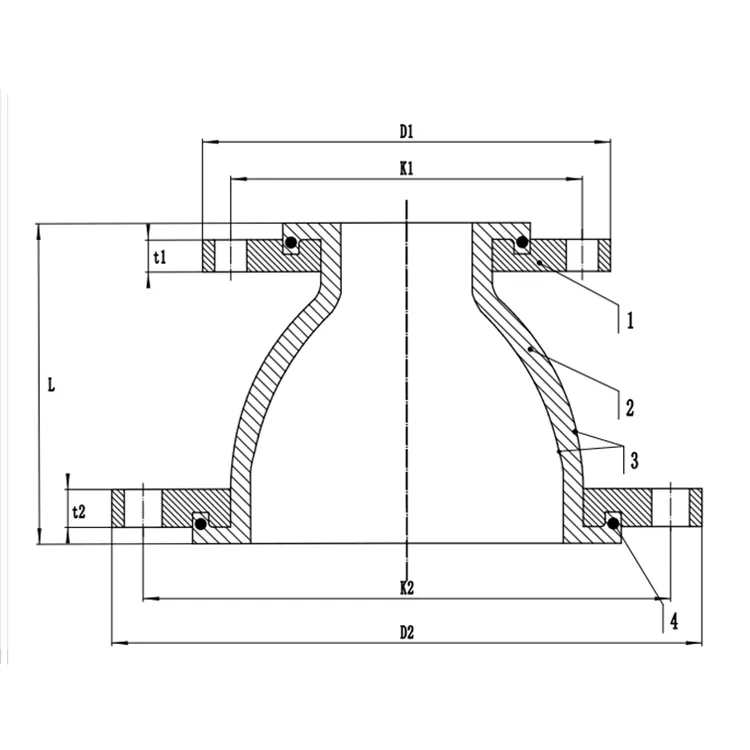

Variable diameter rubber expansion joint section view

Rubber Expansion Joint For Water Pump, DN100 Eccentric Reducing Rubber Expansion Joint
Rubber Expansion Joint For Water Pump, DN100 Eccentric Reducing Rubber Expansion Joint

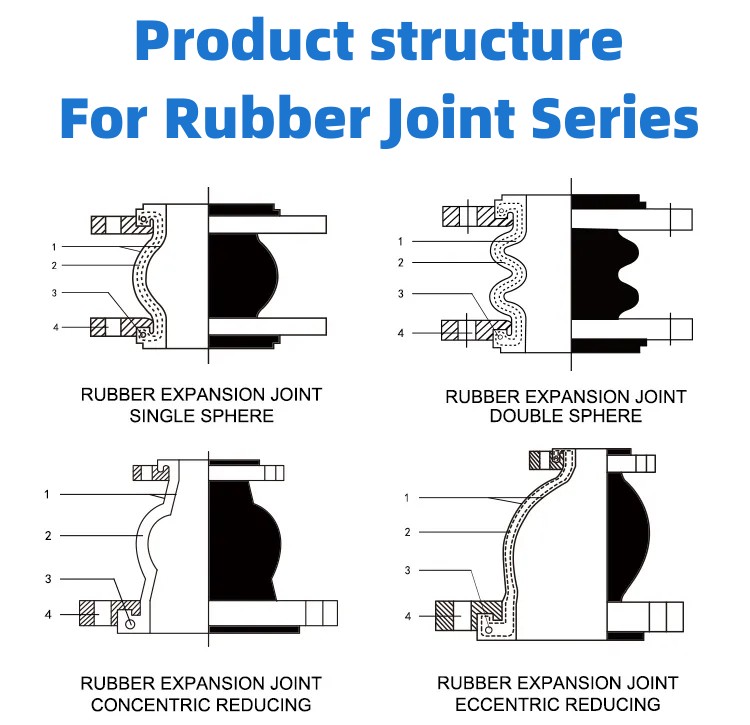

Rubber joints can be divided into: single-ball rubber joint, double-ball rubber joint, triple-ball
rubber joint, concentric rubber joint, eccentric joint, clamp-type rubber joint, 90-degree rubber
elbow, etc., according to their external shapes.
10/2000

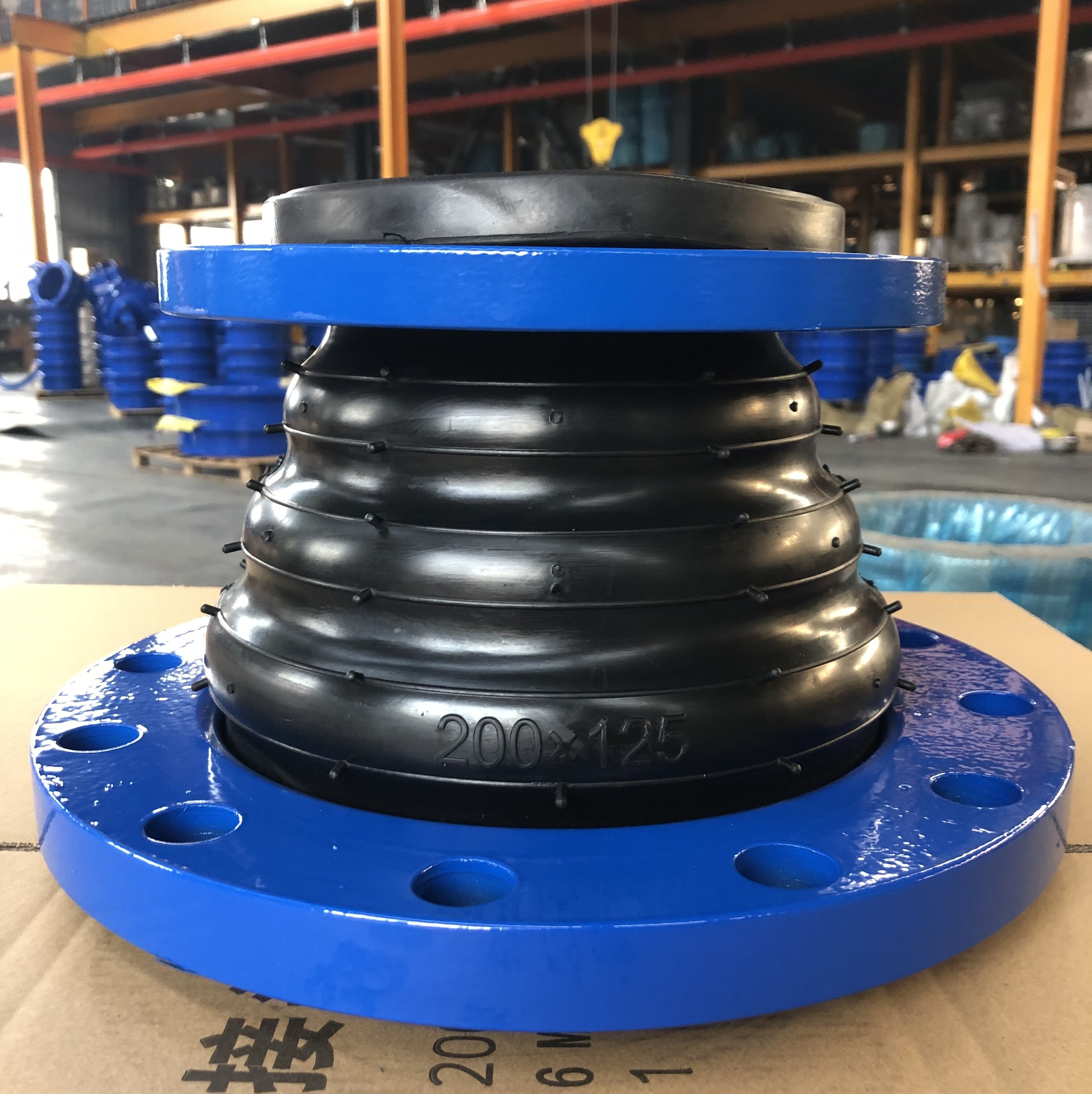

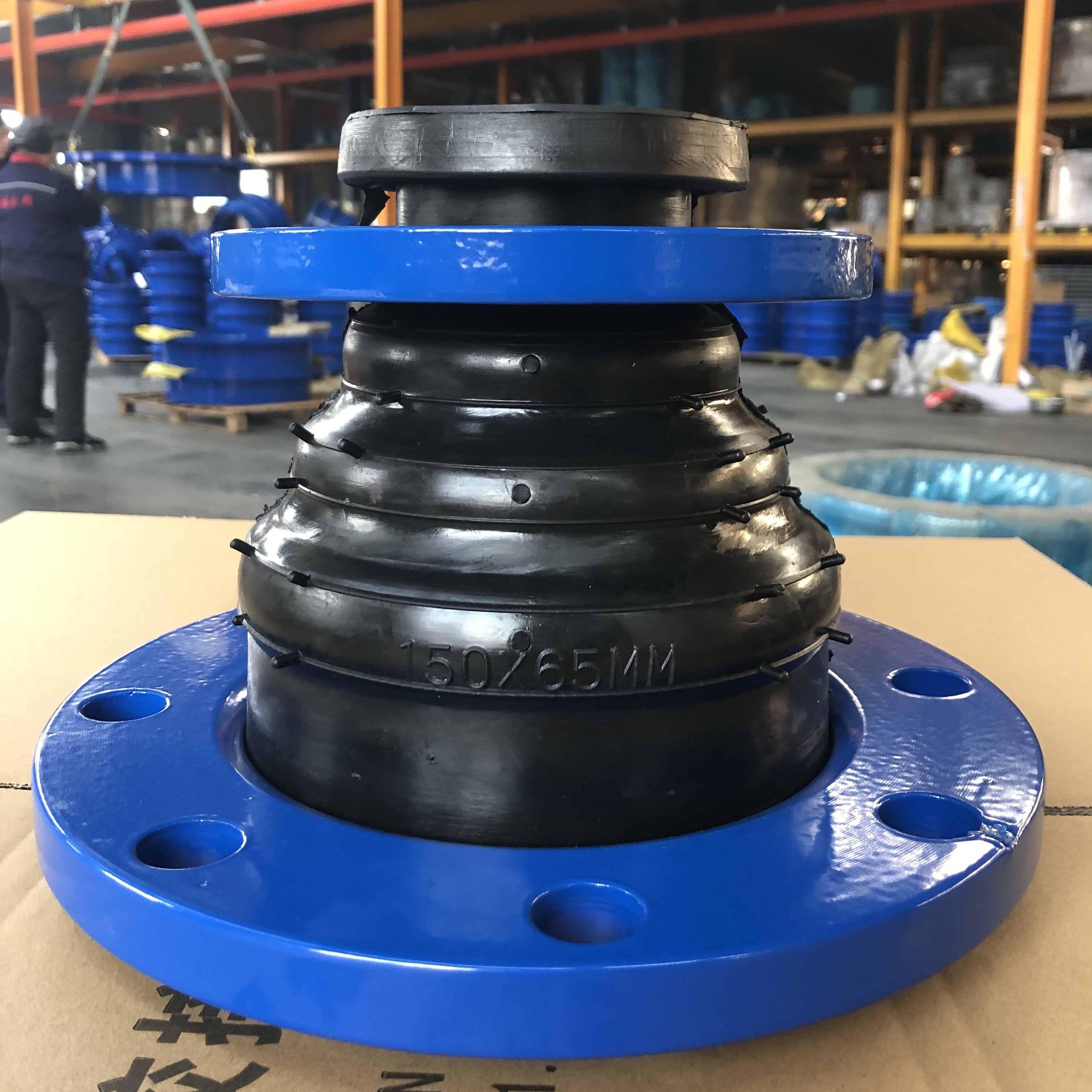

Product real shot pictures

Rubber Expansion Joint For Water Pump, DN100 Eccentric Reducing Rubber Expansion Joint
Rubber Expansion Joint For Water Pump, DN100 Eccentric Reducing Rubber Expansion Joint

Applications of PTFE lined rubber expansion joint:

It is more common in chemical pipeline, mainly used in strong acid-base, strong high temperature,
strong corrosion pipeline equipment, especially in corrosive medium, including: conveying pipe,
exhaust pipe, steam pipe of corrosive gas, high-pressure oil pipe of rolling mill, heat exchanger,

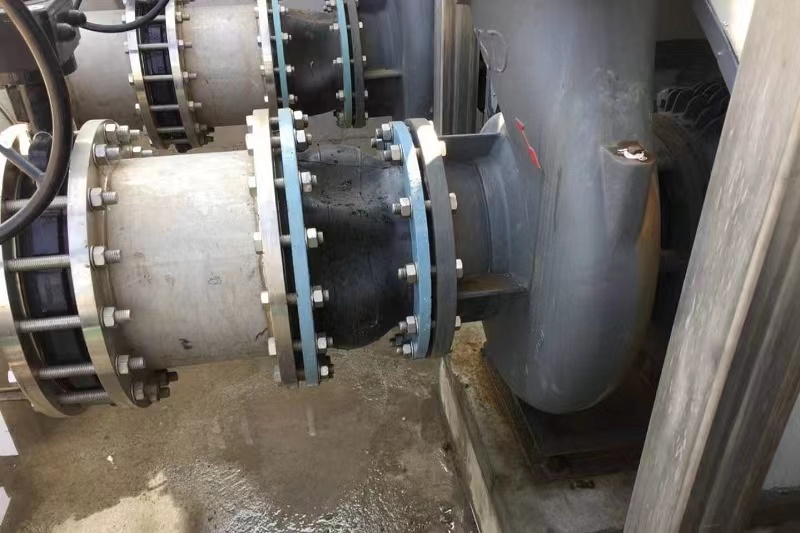

lining of tower and tank, valve and other chemical equipment. The following pictures is our regular
rubber joint application
Rubber Expansion Joint For Water Pump, DN100 Eccentric Reducing Rubber Expansion Joint
Rubber Expansion Joint For Water Pump, DN100 Eccentric Reducing Rubber Expansion Joint

Suitable medium of PTFE lined rubber expansion joint:

According to different material, acid resistance rubber joint, flameproof rubber joint, oil resistant
rubber joint, thermostatic rubber joint, low temperature resistant rubber joint, wear resistance
rubber joint can be made to suitable for various kinds of medium, and environment.
Product packaging
1. Inner package: plastic film / carton cases
2. Outer pacakge: wooden cases
Rubber Expansion Joint For Water Pump, DN100 Eccentric Reducing Rubber Expansion Joint
Our Advantages
1. We offer good quality products in competitive price.
2. We have rich experience in this industry.
3. We have short delivery time .
4. Shipped the goods on time.
5. Meet your special requirements.

Company Profile

Rubber Expansion Joint For Water Pump, DN100 Eccentric Reducing Rubber Expansion Joint

Henan ZhiCheng valve pipe fittings manufacturing co.LTD. founded in 1985, set design,
manufacture, processing and sales as one, in petroleum, chemical industry, metallurgy, electric
power, building, heating, water supply and other industries with high visibility,
Company has strong technical strength, complete production equipment, and scientific research
unit cooperation, adhere to the road of science and technology is popular the factory, has passed
ISO9001 international quality system certification, the existing thousands of partners, the main
products series include: flexible rubber expansion joint, bellows expansion joint, metal hose.
Company to the quality first, the credibility of sincere based on market, to the user is supreme,
harmony and win-win for the purpose of the enterprise. Unremitting efforts, energetic, for the new
and old customers to provide quality products and services.
FAQ
Q:Are you trading company or manufacturer?
A:We are manufacturer of rubber expansion joint, bellow ,flange adaptor and flange with more than
30-years experience.
Q:Do you have products catalog?
A:Yes, we have. Please tell me your email or instant messager, we will send our catalog.
Q:Can you provide drawings and technical data?
A:Yes, our professional technical department will design and provide drawings and technical data.
Q:Do you provide samples? Is it free or charged?
A:Yes, we can offer sample free but shipping charges covered by customer.
Q:Can the products be manufactuered by customer's requirement?
A:Yes, the specifications stated above are the standard ones, we can design and manufacture as
requirement.
